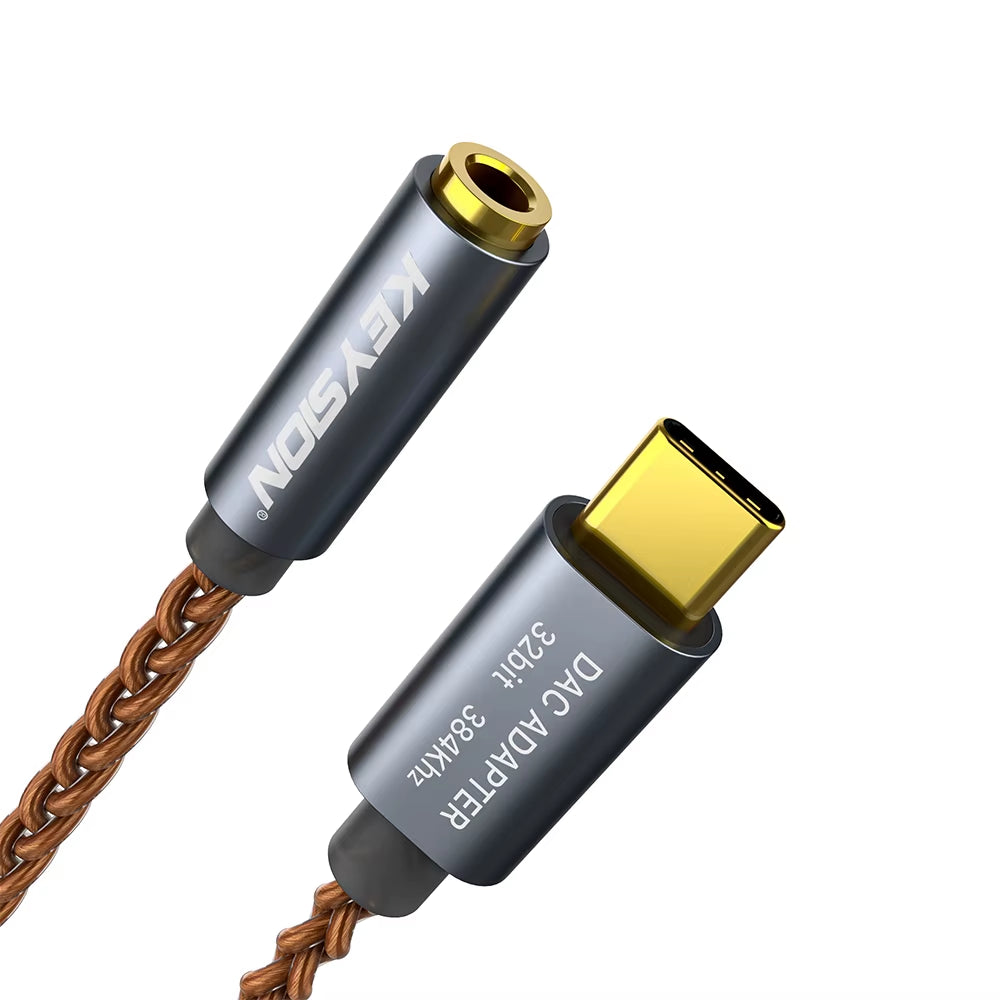

KEYSION HIFI DAC earphone Amplifier USB Type C to 3.5mm Headphone Jack audio adapter 32bit 384kHz Digital Decoder AUX Converter

Chip Parameters

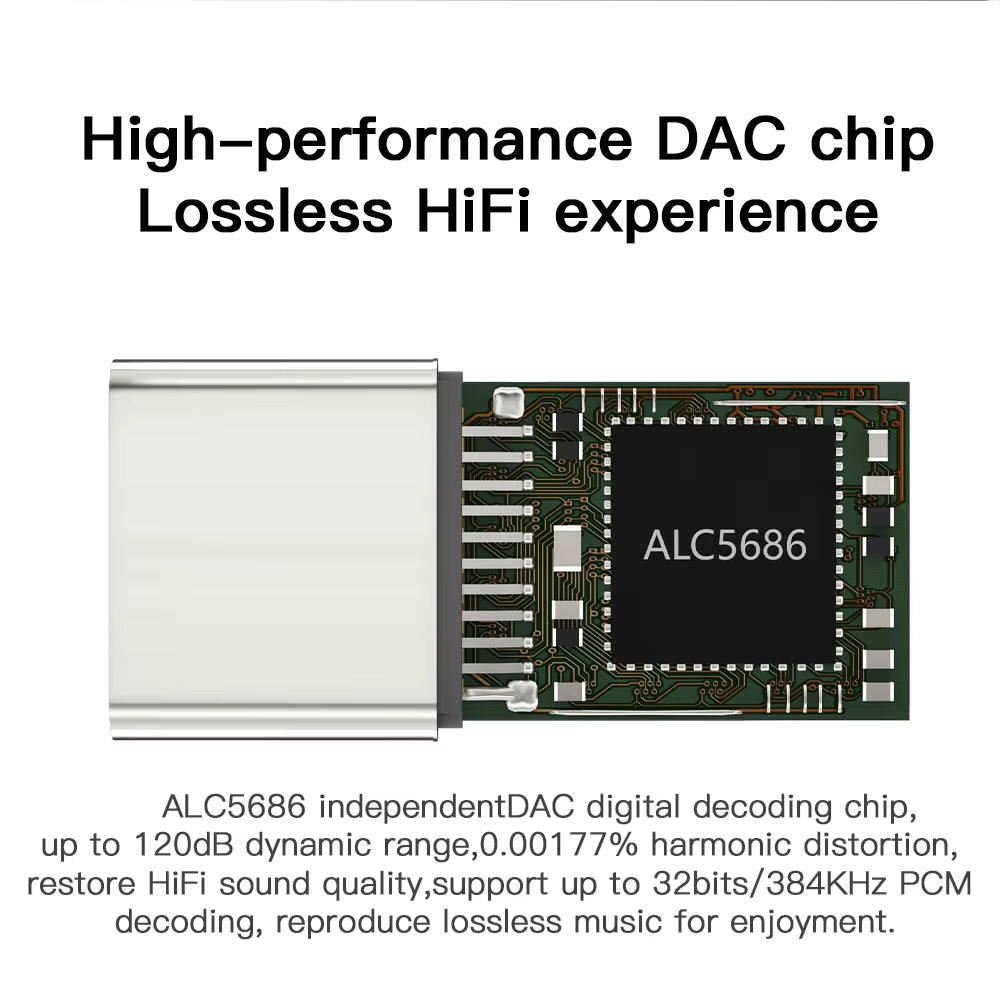

Chip model: Realtek ALC5686

DAC sampling rate: 32bits / 384KHz

Signal to noise ratio / SNR:> 125dB

Dynamic range / DNR:> 100dB

Distortion / THD + N: <0.00177%

Frequency response / FR: 20Hz-80KHz

Output power: 16-600Ω (adaptive)

High performance DAC / Pure HIFI sound quality / 600Ω High impedance

Support system: compatible with win7 / 8/10 and Mac OS X iOS10 / Android4.0 or higher

support : 98% USB TYPE-C ports for smart devices, smartphones / tablets

For Huawei /For Xiaomi/ For Redmi / For Samsung / For Sony / For Honor /For OPPO,,,,more

Product parameters:

Product Name: Type-C Digital Headphone Adapter Amp

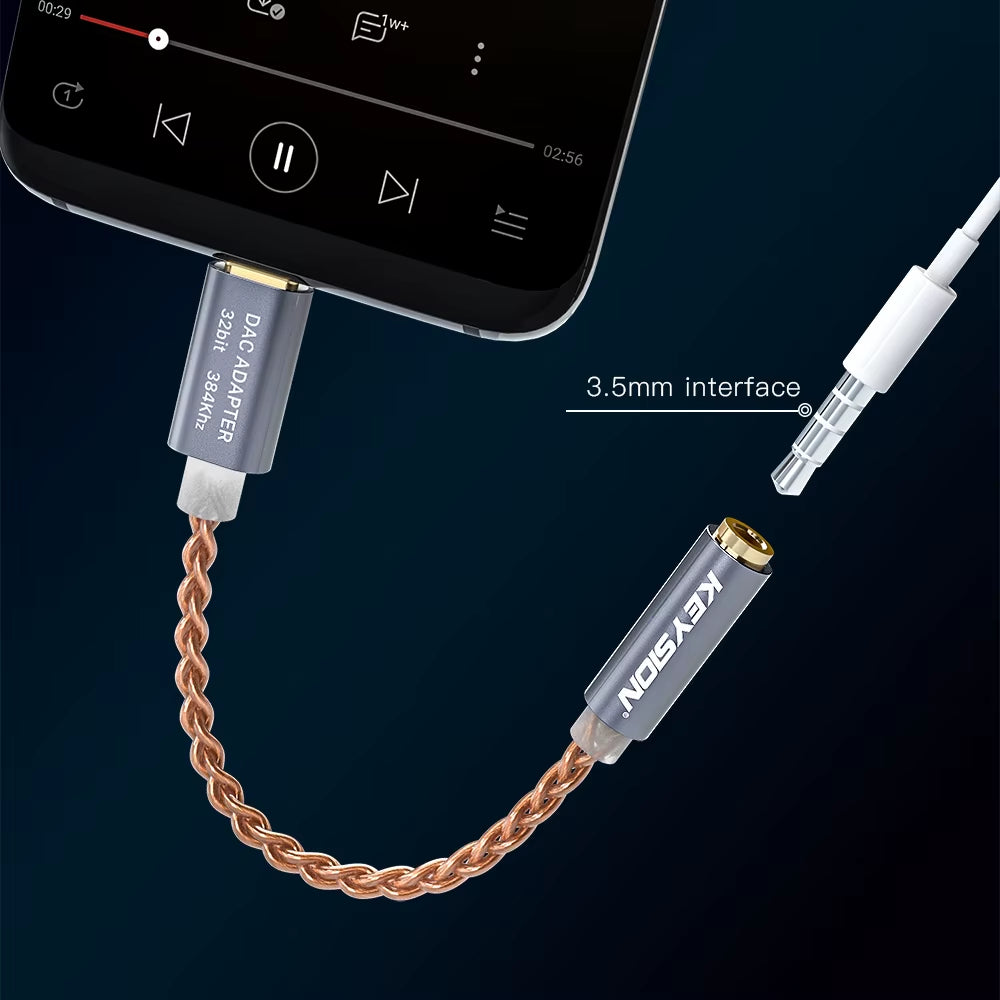

Product function: type-C to 3.5mm interface

Decoding chip: Realtek (Realtek) ALC5686

Supported standards: OMTP / CTIA Headphone automatic switching

Core material: single crystal copper

Shell material: one-piece aluminum alloy sandblasted + anodized

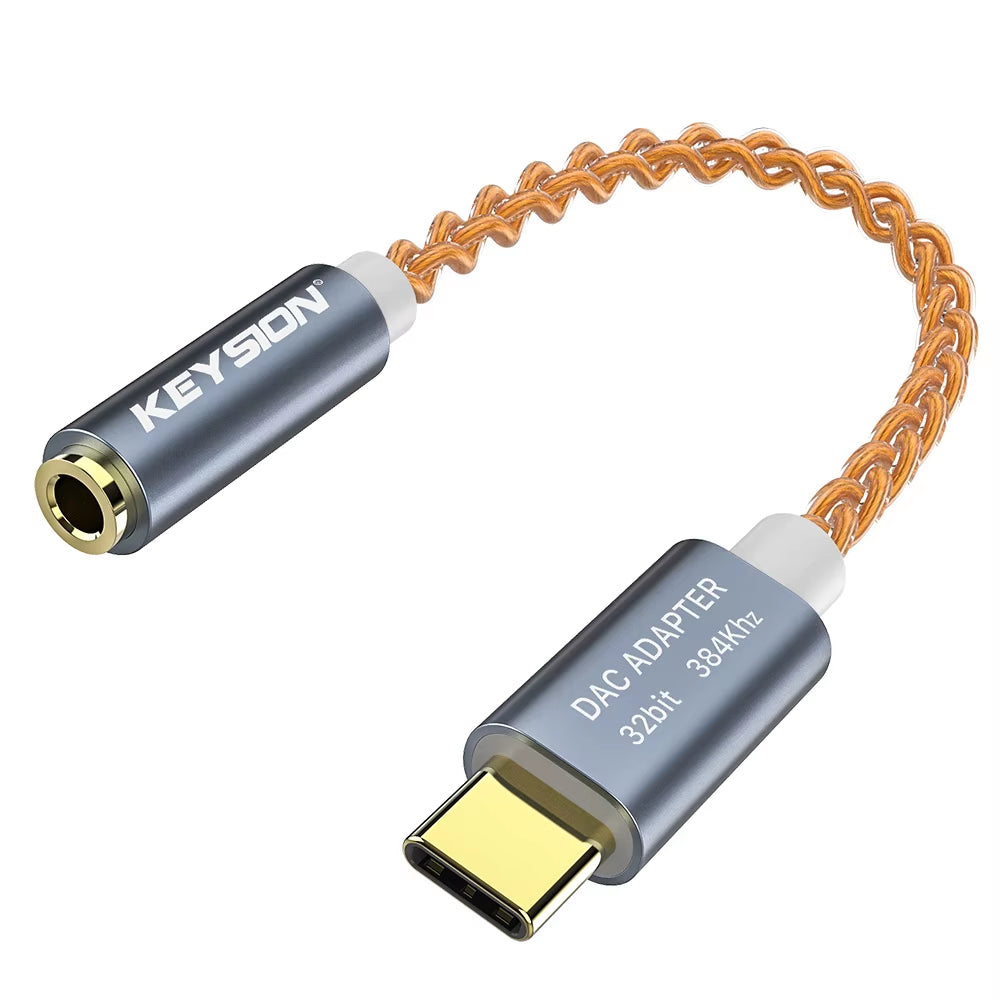

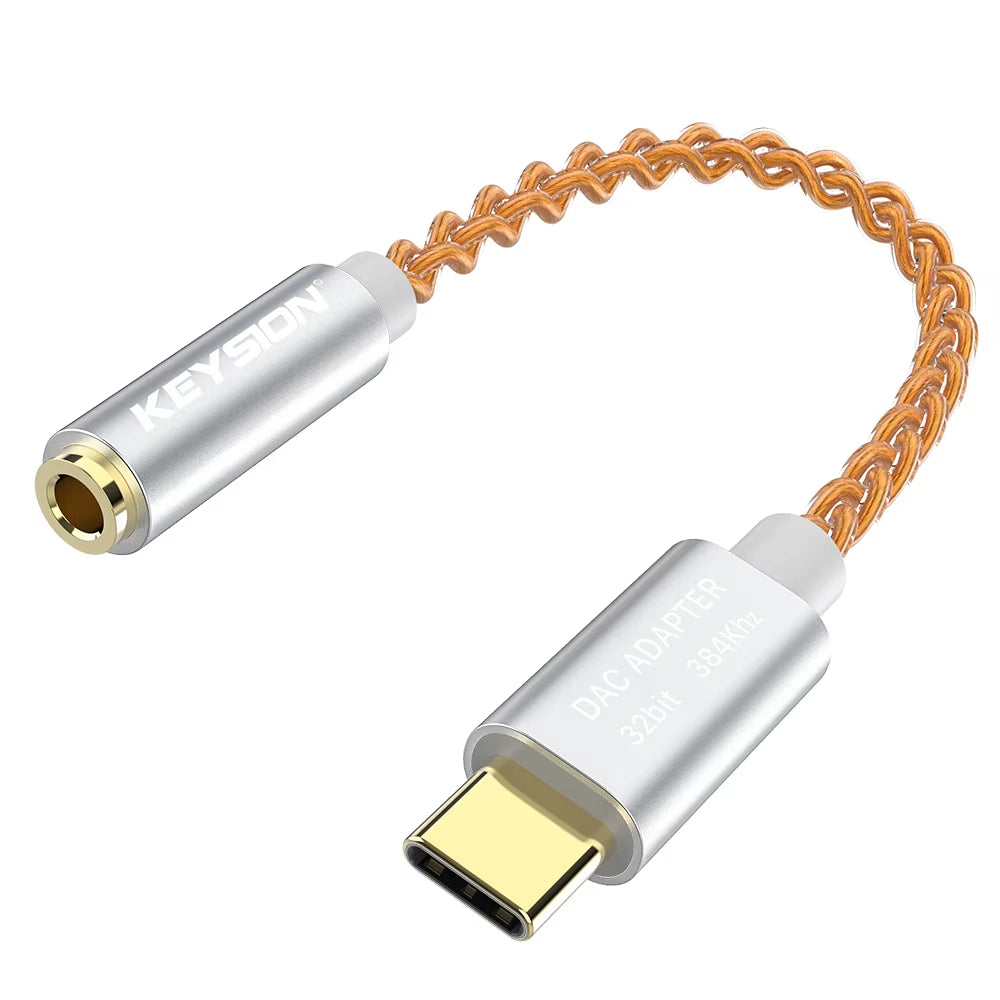

Product color: silver, gray

Product length: 13CM + -0.5mm

Product weight: 8g
